Dedicated mono output stage
MSB specifies continuous output of 220 W into 8 Ω and 400 W into 4 Ω for each amplifier, at less than 1% distortion.
MSB TECHNOLOGY · AMPLIFICATION
M205 Mono Power Amplifier
The M205 is a mono power amplifier rated at 220 W into 8 Ω and 400 W into 4 Ω. A stereo system uses one 41 kg amplifier for each loudspeaker.
$93,500
2-year standard Australian warrantyAvailable to order in AustraliaPrice per amplifier, including GST.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the M205 Mono Power Amplifier
Purpose
- One amplifier chassis for each channel.
Connections
- Connect a preamplifier or volume-controlled DAC to the balanced XLR input.
- The selectable input impedance allows matching to low-impedance MSB outputs; use the setting specified for your source.
Key differences
- Separate chassis keep the two channels’ amplification and power supplies apart.
- The Class A input stage feeds a Class AB output stage.
PRODUCT DESIGN
Design and features

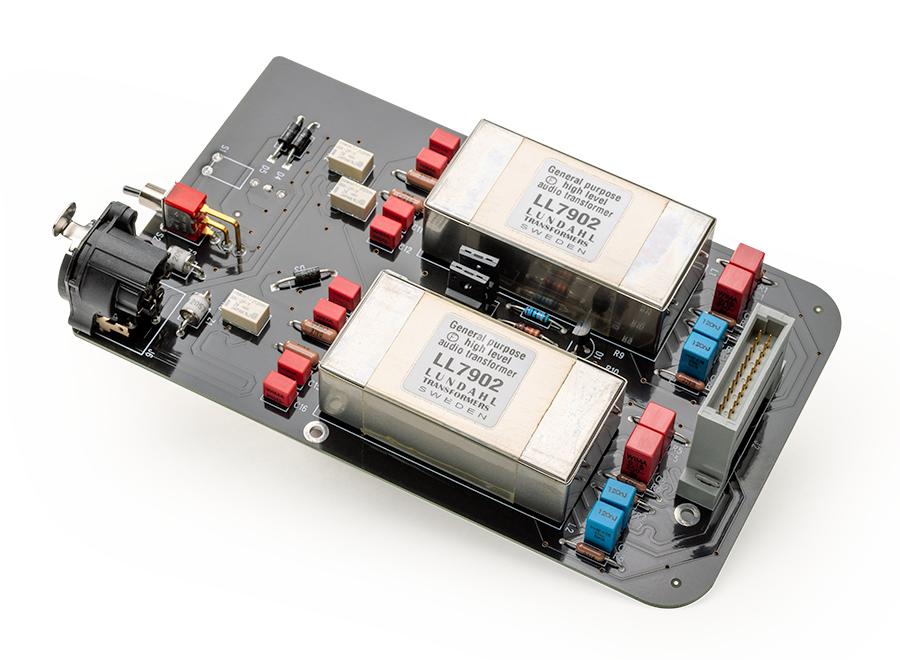

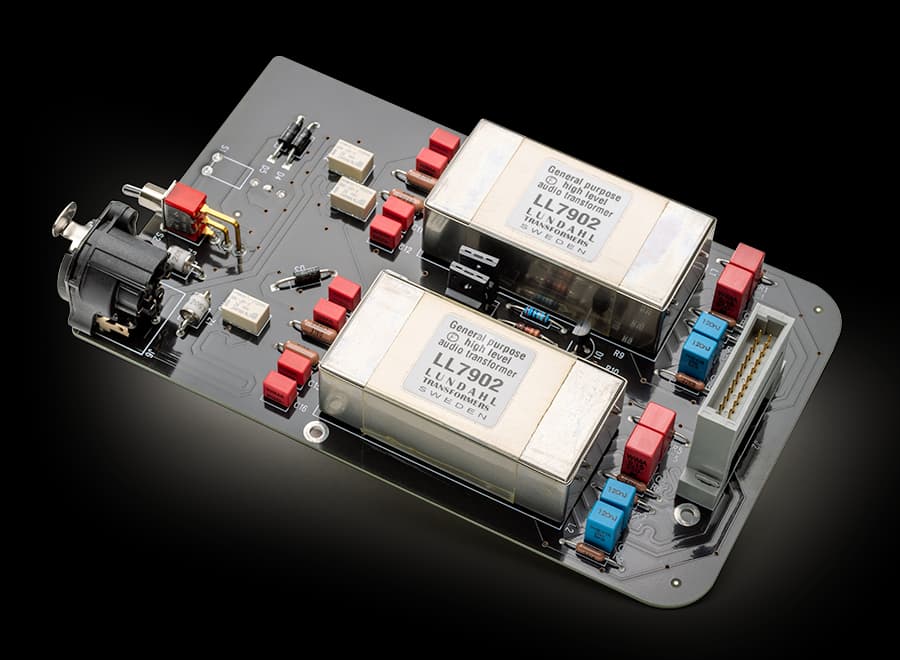

Selectable input impedance
Input impedance sets the electrical load on your DAC or preamplifier. The 75 Ω, 300 Ω and 1.2 kΩ options need a source output capable of driving the chosen load.
Class A input, Class AB output
The Class A input stage handles the incoming signal; the Class AB output stage supplies power to the loudspeakers.

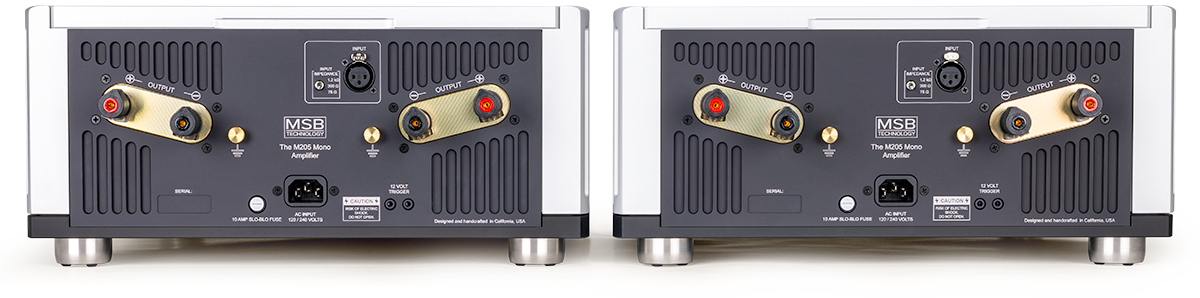

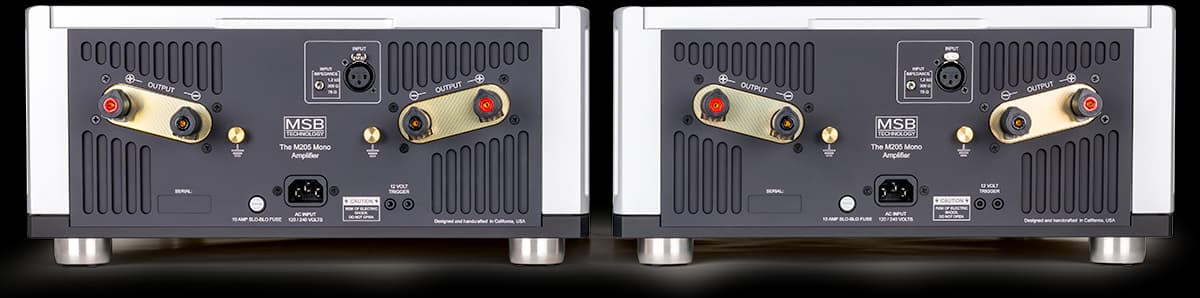

CONNECTIONS
Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- Allow stable support and ventilation for each 41 kg chassis.
- Use speaker impedance, sensitivity and listening distance to judge the power your system needs.
Points to consider
- A preamplifier or DAC must control the volume. The power amplifier has no everyday volume control of its own.
- A stereo pair uses two amplifiers, with power and speaker cables for each.
PRODUCT DETAILS
Technical specifications
Output
- Channels
- Mono
- Power into 8 Ω
- 220 W
- Power into 4 Ω
- 400 W
Connections and matching
- Input
- 1 balanced XLR
- Input impedance
- 75 Ω, 300 Ω or 1.2 kΩ
Physical
- Chassis
- 404 × 483 × 165 mm, excluding feet
- Weight
- 41 kg each
OPTIONS
Finishes and configuration
Finish
- Matte silver anodize
- Matte black anodize
Configuration and included items
We’ll confirm your chosen finish and the supplied configuration in writing before accepting your order.
COMPARE MODELS
Other models to consider
MSB TECHNOLOGY · AMPLIFICATION
M500 Mono Power Amplifier
The M500 is a mono power amplifier rated at 500 W into 8 Ω and 1,000 W into 4 Ω. Each channel has its own 74 kg chassis, with three gain settings.
$225,000
2-year standard Australian warrantyPrice per amplifier, including GST.
MSB TECHNOLOGY · AMPLIFICATION
S202 Stereo Power Amplifier
A stereo power amplifier with 200 W per channel into 8 Ω, selectable input impedance and a single 41 kg chassis.
$47,500
2-year standard Australian warranty
FAQ
Common questions
What does the Australian price for the M205 include?+
$93,500 per amplifier, including GST and a two-year standard Australian warranty. Your quotation lists the chosen configuration and any optional items.
What do I need to connect the M205?+
A stereo system normally uses two M205s, one for each loudspeaker. Feed each balanced XLR input from the matching left or right output of a preamplifier or volume-controlled DAC.
