500 Series stereo output
MSB specifies continuous output of 500 W per channel into 8 Ω and 900 W into 4 Ω, at less than 1% distortion.
MSB TECHNOLOGY · AMPLIFICATION

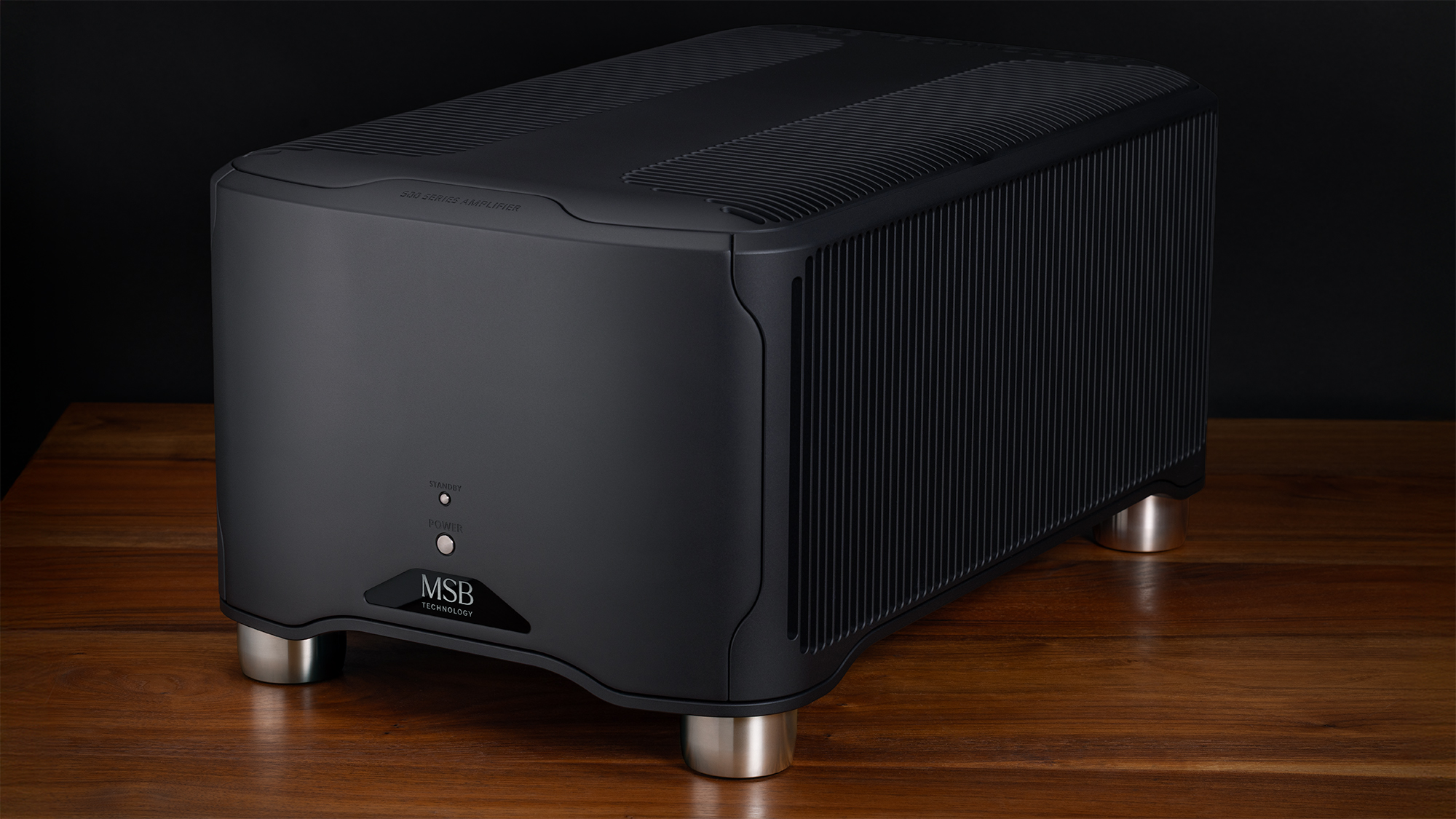

S500 Stereo Power Amplifier
The S500 is a stereo power amplifier rated at 500 W per channel into 8 Ω and 900 W into 4 Ω, with three gain settings and selectable input impedance.
$115,000
2-year standard Australian warrantyAvailable to order in AustraliaAustralian availability and the exact supplied configuration are confirmed on enquiry.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the S500 Stereo Power Amplifier
Purpose
- High-output stereo amplification in one chassis.
Connections
- Connect a preamplifier or volume-controlled DAC to the balanced XLR input.
- The selectable input impedance allows matching to low-impedance MSB outputs; use the setting specified for your source.
Key differences
- Two amplifier channels share one chassis.
- Three gain settings allow adjustment for the source output level.
PRODUCT DESIGN
Design and features
Three gain settings
Three gain settings adjust how much the input signal is amplified, helping you find a useful volume-control range with your DAC or preamplifier.
Class A input, Class AB output
The Class A input stage handles the incoming signal; the Class AB output stage supplies power to the loudspeakers.
CONNECTIONS
Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- Allow stable support and ventilation for the 74 kg chassis.
- Use speaker impedance, sensitivity and listening distance to judge the power your system needs.
Points to consider
- A preamplifier or DAC must control the volume. The power amplifier has no everyday volume control of its own.

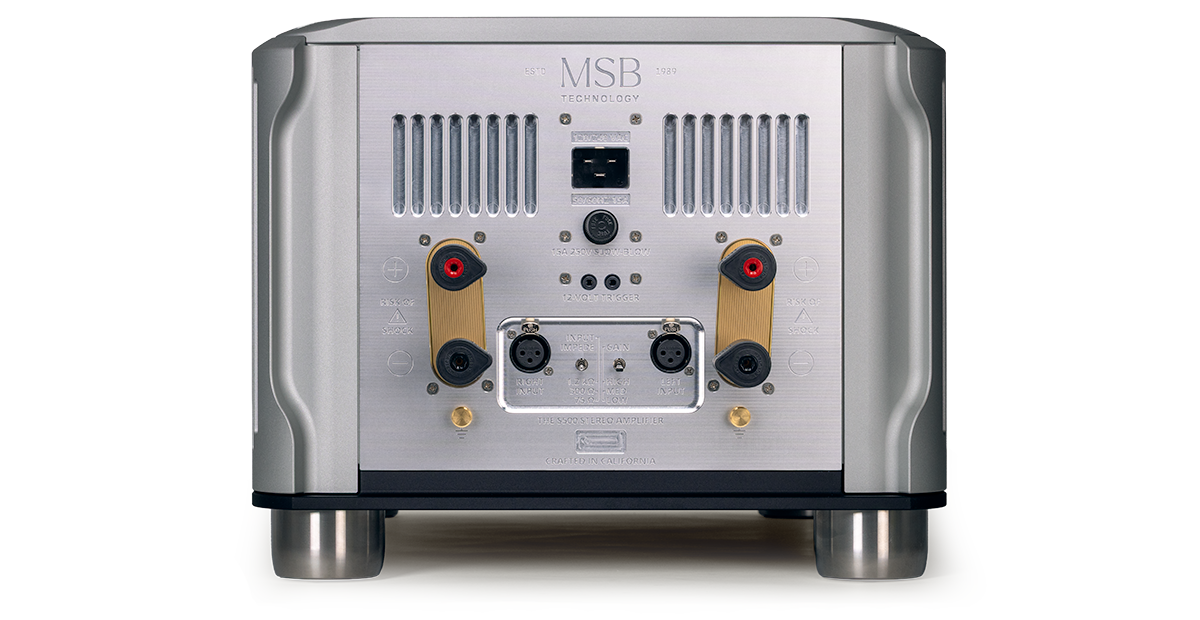

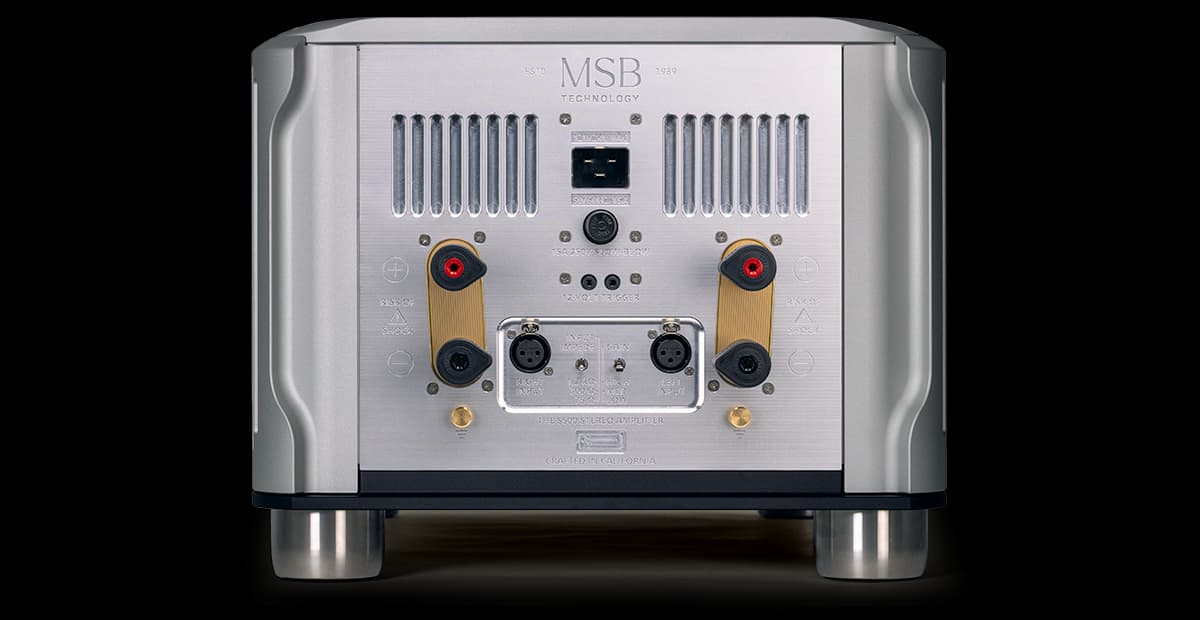

- Leave room behind the amplifier for XLR inputs, speaker cables and the mains connection.
PRODUCT DETAILS
Technical specifications
Output
- Channels
- Stereo
- Power into 8 Ω
- 500 W per channel
- Power into 4 Ω
- 900 W per channel
System matching
- Gain
- 3 selectable settings
- Input impedance
- Selectable
Physical
- Chassis
- 381 × 599 × 305 mm
- Weight
- 74 kg
OPTIONS
Finishes and configuration
Finish
- Matte silver anodize
- Matte black anodize
Configuration and included items
We’ll confirm your chosen finish and the supplied configuration in writing before accepting your order.
COMPARE MODELS
Other models to consider
MSB TECHNOLOGY · AMPLIFICATION
M500 Mono Power Amplifier
The M500 is a mono power amplifier rated at 500 W into 8 Ω and 1,000 W into 4 Ω. Each channel has its own 74 kg chassis, with three gain settings.
$225,000
2-year standard Australian warrantyPrice per amplifier, including GST.
MSB TECHNOLOGY · AMPLIFICATION
S202 Stereo Power Amplifier
A stereo power amplifier with 200 W per channel into 8 Ω, selectable input impedance and a single 41 kg chassis.
$47,500
2-year standard Australian warranty
FAQ
Common questions
What does the Australian price for the S500 include?+
$115,000, including GST and a two-year standard Australian warranty. Your quotation lists the chosen configuration and any optional items.
What do I need to connect the S500?+
A preamplifier or volume-controlled DAC feeds the balanced XLR inputs. S500 drives both loudspeakers from one chassis; its three gain settings help match the source level and the volume range you use.
