Driver and cabinet design

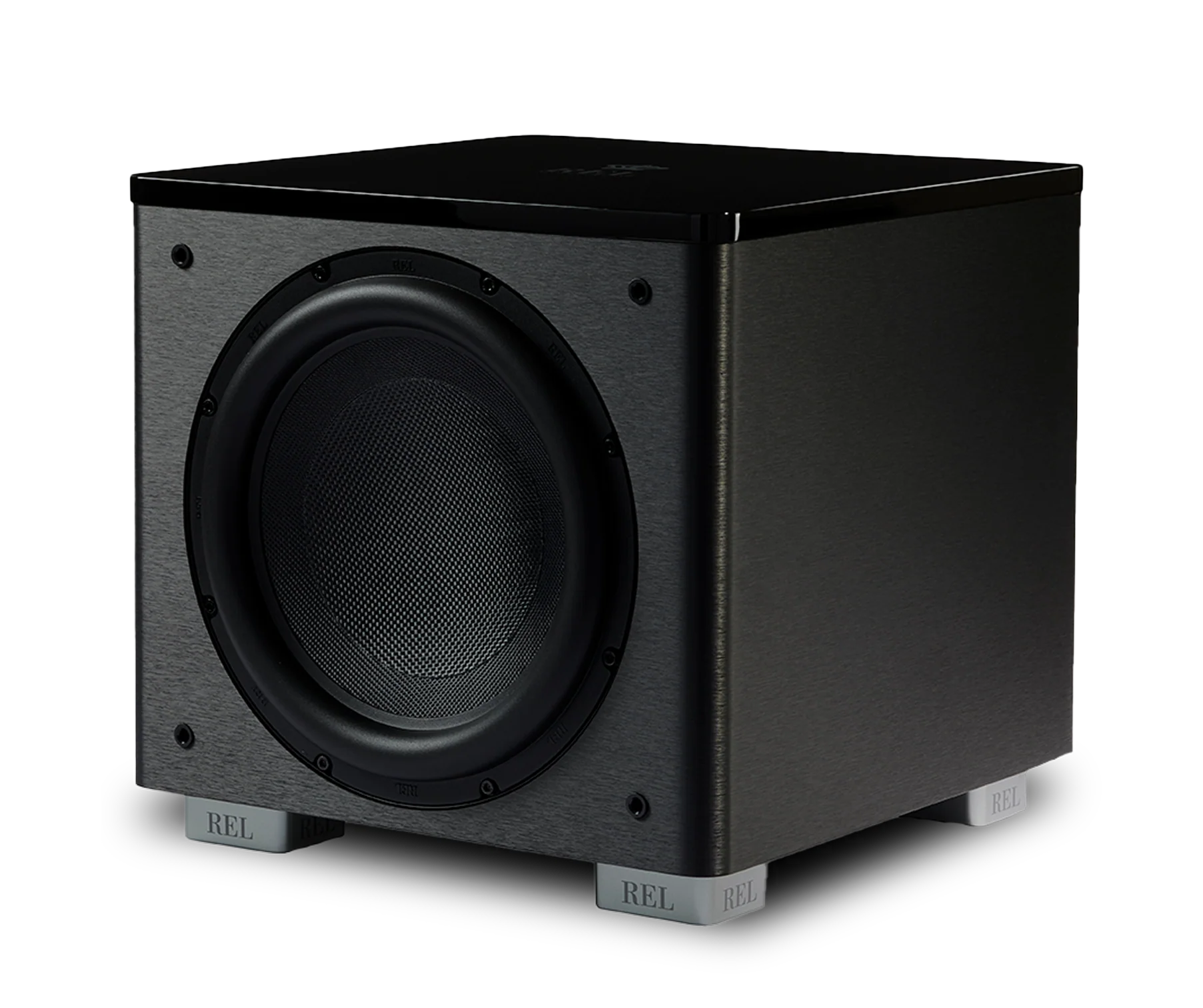

A 12-inch front-facing CarbonGlas driver and 500 W amplifier sit in a sealed cabinet. It is larger than HT/1003 MKII, with lower manufacturer-rated extension.
REL ACOUSTICS · SUBWOOFERS
HT/1205 MKII
A larger alternative to HT/1003 MKII for film bass, with RCA/LFE connection.
$1,999
3-year standard Australian warrantyAvailable to order in Australia. Stock and delivery timing are confirmed for each enquiry.Price for one subwoofer, including GST. Optional accessories and purchases of multiple units are quoted separately.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the HT/1205 MKII
Purpose
- If you want more impact from film effects, HT/1205 MKII connects to the subwoofer output of your AV receiver or processor. Compared with HT/1003 MKII, it has a 12-inch driver, a 500 W amplifier and a lower manufacturer-rated bass extension in a larger cabinet. RCA/LFE is the wired connection; HT-Air MKII is optional.
PRODUCT DESIGN
Design and features
CONNECTIONS
Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- Connect the AV receiver or processor’s subwoofer output to the RCA LFE input. The RCA output can pass the signal to another subwoofer.
- The cabinet has no physical High Level input. Set the receiver’s crossover, level and delay to suit the main speakers.
Points to consider
- The quoted low-frequency extension is a manufacturer specification. Bass level and decay at your seat also depend on placement and the room.
INSTALLATION
Placement and installation
- Leave room around the cabinet and rear connections, keep ventilation openings clear and the mains plug accessible. Compare bass at the main seats when setting crossover, level and delay. This model is not designed for vertical stacking.
PRODUCT DETAILS
Technical specifications
Manufacturer specifications
- Type
- Closed box; front-firing active driver
- Active driver
- 12 in / 300 mm CarbonGlas
- Passive radiator
- None
- Manufacturer low-frequency extension
- -6 dB at 22 Hz
- Power output
- 500 W RMS
- Amplifier
- Class D
- Dimensions (W × H × D)
- 413 × 387 × 438 mm
- Net weight
- 19.6 kg
- Finish options
- Black or White line-grained composite cabinet with a gloss top plate
OPTIONS
Finishes and configuration
Finish
- Black or White line-grained composite cabinet with a gloss top plate
Configuration and included items
HT-Air MKII is an optional wireless system for line-level or LFE audio. It is sold separately, and the subwoofer still needs mains power.
ROOM MEASUREMENT
Understand how bass behaves in your room.
Room & Bass Measurement checks which bass frequencies stand out or fade slowly, and how a subwoofer works with your main speakers. We listen with you, measure and try practical adjustments where possible. No product purchase is required.
FAQ
Common questions
Where does it connect to my AV receiver?+
Use the receiver or processor’s subwoofer output with the subwoofer’s RCA LFE input. The cabinet also provides RCA low-level input, but no physical High Level input. If a long signal cable is impractical, HT-Air MKII is an optional wireless route for the line-level or LFE signal.
What does the Australian price for HT/1205 MKII cover?+
$1,999 is the price for one subwoofer, including GST, with a 3-year standard Australian warranty. Any optional accessories and delivery timing will be listed in your quotation. These warranty terms do not limit statutory consumer guarantees under Australian Consumer Law.
FURTHER READING
Manufacturer information and manuals
Read REL’s product information, setup instructions and support guidance.
AUSTRALIAN ENQUIRY & SUPPORT
Enquire about REL HT/1205 MKII
Tell us which speakers and AV receiver or processor you use, where a subwoofer could fit, and what you would like to hear differently. We can help compare connection and model options, then confirm configuration and supply in your quotation.
