Driver and cabinet design
The 15-inch front-facing CarbonGlas driver is powered by a 1,000 W amplifier. Level, crossover and 0°/180° phase controls are provided for setup.
REL ACOUSTICS · SUBWOOFERS
HT/1510 Predator
A 15-inch home-cinema subwoofer with RCA and XLR connections for your processor.
$4,199
3-year standard Australian warrantyAvailable to order in Australia. Stock and delivery timing are confirmed for each enquiry.Price for one subwoofer, including GST. Optional accessories and purchases of multiple units are quoted separately.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the HT/1510 Predator
Purpose
- HT/1510 Predator brings a 15-inch driver and 1,000 W amplifier to a home cinema system. Unlike the two smaller HT models, it offers XLR as well as RCA connections, which may suit the outputs on your processor. Its larger cabinet also needs a practical floor position and handling route.
PRODUCT DESIGN
Design and features
CONNECTIONS

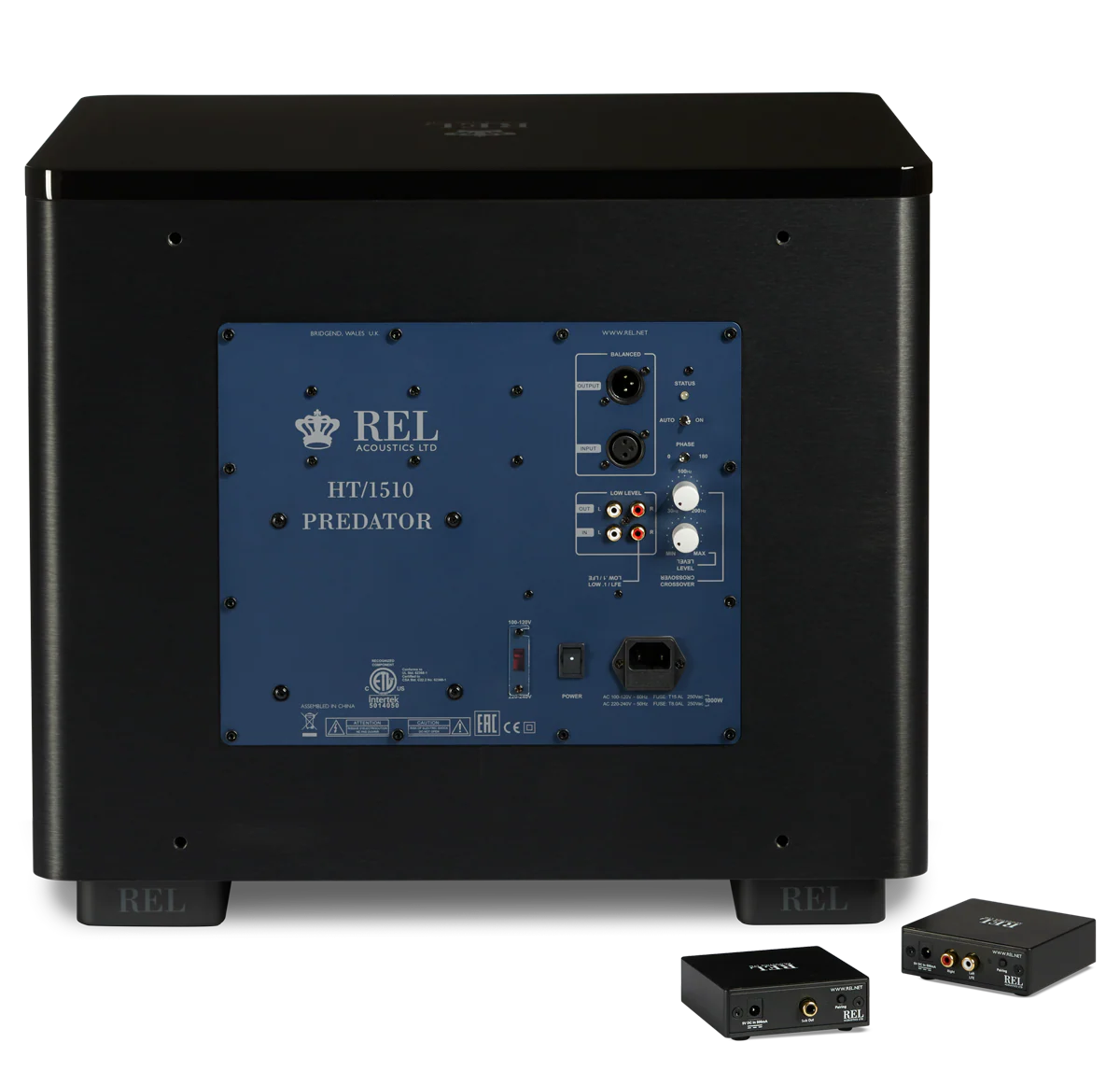

Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- Use RCA or XLR to match the subwoofer output on your AV receiver or processor. The corresponding outputs can pass the signal to another unit.
- The cabinet has no physical High Level input. Set the receiver’s crossover, level and delay to suit the main speakers.
Points to consider
- The quoted low-frequency extension is a manufacturer specification. Bass level and decay at your seat also depend on placement and the room.
INSTALLATION

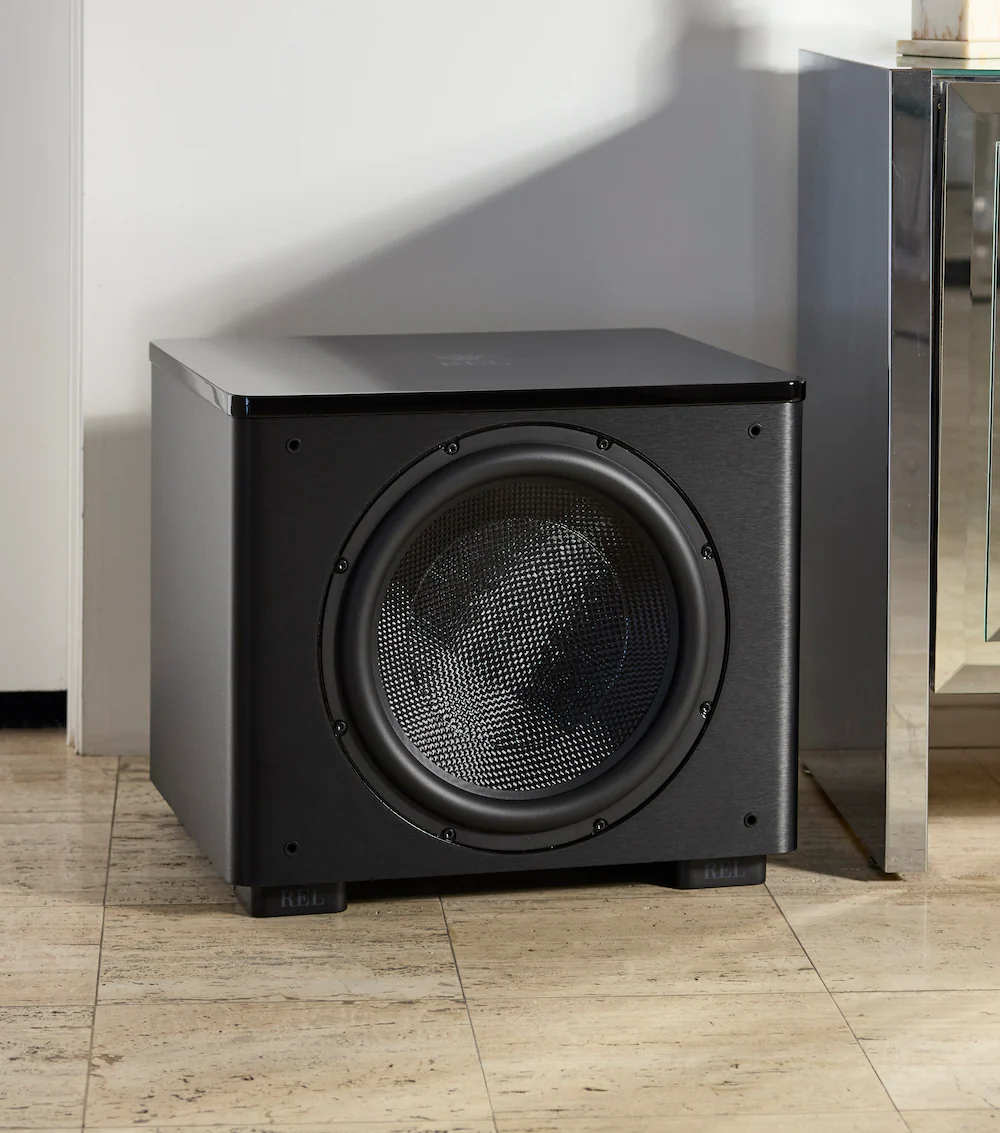

Placement and installation
- Use two-person or professional handling for the 45.2 kg unit and confirm floor loading and access.
- For vertical stacking, use REL-supplied hardware and follow the official manual. The appropriate quantity needs individual assessment.
- Confirm electrical load, stability, ventilation and anti-tip safety before installation.
PRODUCT DETAILS
Technical specifications
Manufacturer specifications
- Type
- Closed box; front-firing active driver
- Active driver
- 15 in / 380 mm CarbonGlas
- Passive radiator
- None
- Manufacturer low-frequency extension
- -6 dB at 20 Hz
- Power output
- 1,000 W RMS
- Amplifier
- Linear power supply with Class D output
- Dual parametric filter
- Yes
- Dimensions (W × H × D)
- 540 × 457 × 494 mm
- Net weight
- 45.2 kg
- Finish options
- Black or White line-grained composite cabinet with a gloss top plate
OPTIONS
Finishes and configuration

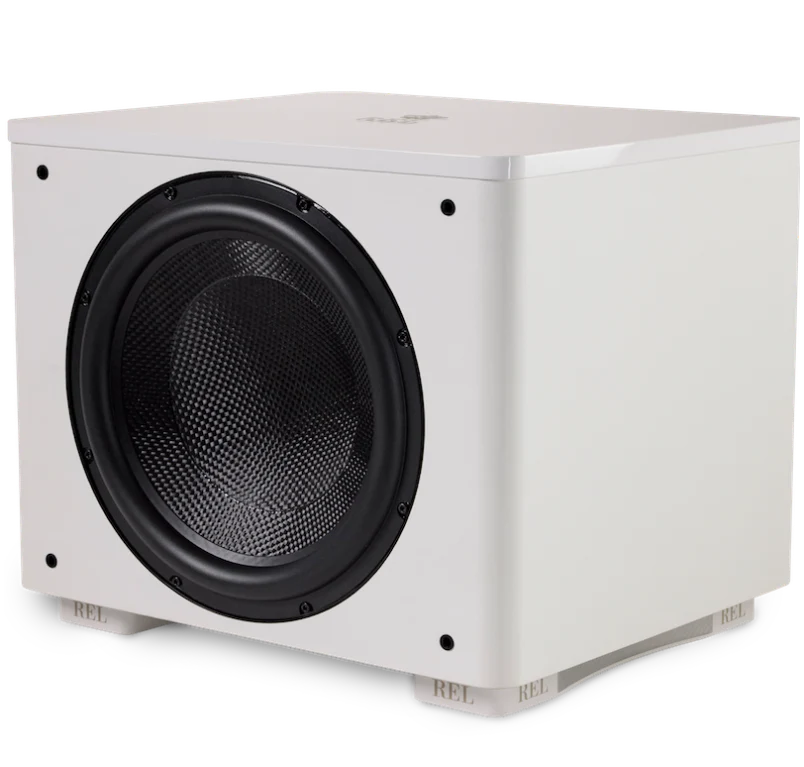

Finish
- Black or White line-grained composite cabinet with a gloss top plate
Configuration and included items
HT-Air MKII and AirShip II wireless systems are optional and sold separately. Connect the receiver to the appropriate line-level input. Mains power is still required.
ROOM MEASUREMENT
Understand how bass behaves in your room.
Room & Bass Measurement checks which bass frequencies stand out or fade slowly, and how a subwoofer works with your main speakers. We listen with you, measure and try practical adjustments where possible. No product purchase is required.
FAQ
Common questions
Should I use RCA or XLR?+
Use the connection that matches the subwoofer output on your AV receiver or processor. HT/1510 provides both RCA and XLR connections. Check the socket labels and the manual for the chosen signal path; the cabinet does not have a physical High Level input.
What does the Australian price for HT/1510 Predator cover?+
$4,199 is the price for one subwoofer, including GST, with a 3-year standard Australian warranty. Any optional accessories and delivery timing will be listed in your quotation. These warranty terms do not limit statutory consumer guarantees under Australian Consumer Law.
