Driver and cabinet design
The FibreCarbon active driver uses an inverted carbon-fibre centre cap. The painted finishes give the cabinet a different appearance from the standard T/9x, while keeping the same cabinet format.
REL ACOUSTICS · SUBWOOFERS
T/9x SE
The T/9x format with a FibreCarbon active driver and five distinctive finishes.
$3,299
3-year standard Australian warrantyAvailable to order in Australia. Stock and delivery timing are confirmed for each enquiry.Price for one subwoofer, including GST. Optional accessories and purchases of multiple units are quoted separately.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the T/9x SE
Purpose
- T/9x SE is the choice to consider when the subwoofer’s appearance is part of the room plan. It keeps the T/9x cabinet format and 300 W amplifier, with a FibreCarbon active driver and five distinctive painted finishes. The differences are the driver construction and finish options, rather than a larger cabinet.
PRODUCT DESIGN
Design and features

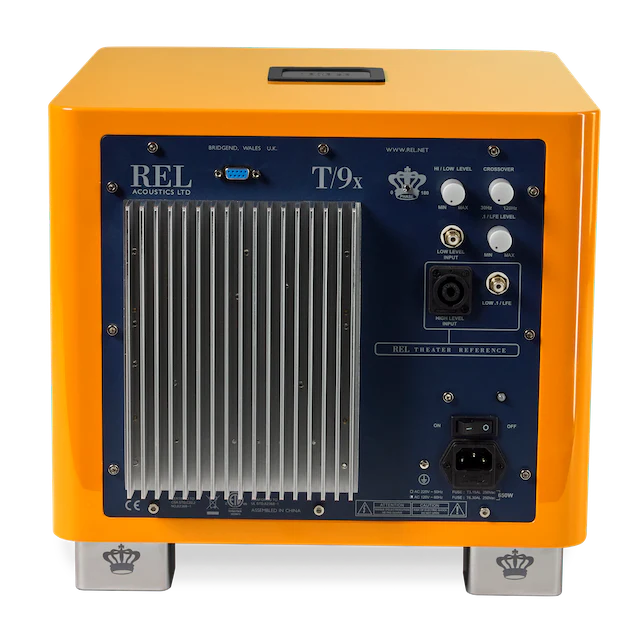

CONNECTIONS
Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- High Level takes a signal from a compatible amplifier’s speaker terminals. Alternatively, connect a volume-controlled preamplifier output to the RCA Low Level input.
- The separate RCA .1/LFE input connects to an AV receiver or processor’s subwoofer output, with its own level control.
- Use High Level or Low Level, not both together. For High Level, follow the instructions for your exact amplifier, including any Class D, balanced, bridged or monoblock requirements.
Points to consider
- The quoted low-frequency extension is a manufacturer specification. Bass level and decay at your seat also depend on placement and the room.
INSTALLATION
Placement and installation
- Keep the supplied feet fitted and leave the space beneath the downward-facing driver or radiator clear. Allow access to the rear controls and cables. This model is not designed for vertical stacking.
- Try the available positions, then adjust level, crossover and phase while listening with the main speakers at your usual volume.
- Allow an additional 44.5 mm behind the cabinet when the High Level connector is fitted.
- The cabinet weighs 20.6 kg.
PRODUCT DETAILS
Technical specifications
Manufacturer specifications
- Type
- Front-firing active driver; down-firing passive radiator
- Active driver
- 10 in / 250 mm FibreCarbon with inverted carbon-fibre centre cap
- Passive radiator
- 10 in / 250 mm FibreAlloy
- Manufacturer low-frequency extension
- -6 dB at 27 Hz
- Power output
- 300 W RMS
- Amplifier
- Class A/B
- Dimensions (W × H × D)
- 370 × 340 × 393 mm; add 44.5 mm for High Level connector
- Net weight
- 20.6 kg
- Finish options
- Italian Racing Red, Le Mon Yellow, French Racing Blue, Green With Envy, Tangerine Dream
OPTIONS
Finishes and configuration
Finish
- Italian Racing Red, Le Mon Yellow, French Racing Blue, Green With Envy, Tangerine Dream
Configuration and included items
Arrow wireless is an optional accessory, sold separately. The subwoofer needs mains power with either a wired or wireless audio connection.
ROOM MEASUREMENT
Understand how bass behaves in your room.
Room & Bass Measurement checks which bass frequencies stand out or fade slowly, and how a subwoofer works with your main speakers. We listen with you, measure and try practical adjustments where possible. No product purchase is required.
FAQ
Common questions
How is T/9x SE different from the standard T/9x?+
T/9x SE keeps the cabinet dimensions and 300 W amplifier, but uses a FibreCarbon active driver and offers five distinctive painted finishes. It is a different driver and finish specification, not a larger cabinet. Your preferred appearance and the way it works with the system can both inform the choice.
What does the Australian price for T/9x SE cover?+
$3,299 is the price for one subwoofer, including GST, with a 3-year standard Australian warranty. Any optional accessories and delivery timing will be listed in your quotation. These warranty terms do not limit statutory consumer guarantees under Australian Consumer Law.
FURTHER READING
Manufacturer information and manuals
Read REL’s product information, setup instructions and support guidance.
AUSTRALIAN ENQUIRY & SUPPORT
Enquire about REL T/9x SE
Tell us which speakers and amplifier you use, where a subwoofer could fit, and what you would like to hear differently. We can help compare connection and model options, then confirm configuration and supply in your quotation.
