Pressure-based active absorption
Microphones inside the C214 sense low-frequency room pressure, while its actuator and electronics work to absorb that energy across the 15 to 160 Hz operating range.
PSI AUDIO · ACTIVE BASS CONTROL
AVAA C214
AVAA C214 is for bass that keeps ringing after the note has ended. It actively absorbs low-frequency energy from 15 to 160 Hz in the room, without an audio connection to your music system.
A$6,199 each
5-year standard Australian warranty; 1 extra year after product registrationUsually arrives within 2 to 3 business days, subject to order confirmation.Price per unit, including GST.
Free Australia-wide shipping · 5-year warranty, plus 1 extra year after product registration · Australian Consumer Law rights apply.
New product · Available by enquiry · Australia-wide delivery · Melbourne in-home demonstration available
USES
When to consider AVAA C214
What it does
- Reduce excess low-frequency pressure and resonance in the room
- Shorten bass overhang without putting DSP in the playback signal path
What you might hear
- Bass notes linger after the recording has moved on to the next note
- You need low-frequency absorption where large passive bass traps would take up too much space
What you want to change
- You want to reduce persistent bass ringing that masks the end of a note
- You want to treat the room while leaving your DAC, preamp and main playback path untouched
PRODUCT DESIGN
How C214 absorbs low-frequency sound
Use it standalone or control it from the app
The unit can operate independently, while the AVAA Controller App provides remote on/off and sensitivity control over a 2.4 GHz Wi-Fi network.
Placement near walls and corners
Bass pressure is often higher near solid walls and corners. Comparing frequency response and decay with C214 in different positions shows where it reduces the room’s resonances.
LISTENING & PLACEMENT
Listen to how the bass fades
C214 works in the room without a connection to your music signal. Its position and sensitivity setting affect how it absorbs bass.
Placement and adjustment
- C214 needs mains power but no audio connection to your DAC, preamplifier or loudspeakers
- Position and sensitivity can be adjusted while comparing the response and decay in your listening room
What to listen for
- Listen to the end of a bass note: does it stop cleanly or hang over the next note?
- Compare response and decay measurements to see changes in bass level and how quickly it fades.
- Try different positions to find where the absorber has the clearest effect on the ringing bass.
- For missing bass caused by cancellation, start with speaker and seat placement. C214 does not extend the speakers’ bass response.
INSTALLATION
Placement and installation
- PSI recommends rooms of 10 m² or larger. Use the bass problem and available positions to guide the setup within that space.
- Corners and solid walls often have higher low-frequency pressure, making them useful places to try the absorber.
- Large reflective objects should remain approximately one metre clear in front
PRODUCT DETAILS
Technical specifications
Product
- Product type
- Digital pressure-based active bass absorber
- Operating range
- 15 Hz to 160 Hz

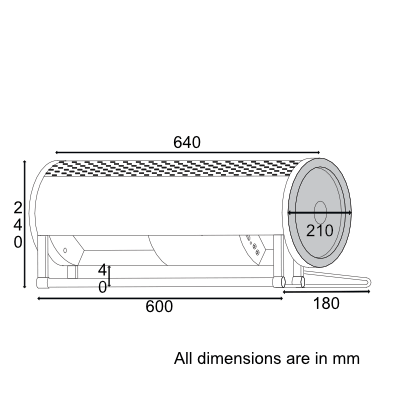

- Dimensions
- 640 × 210 × 210 mm (H × W × D)
- Weight
- 11 kg
Control and power
- Sensitivity adjustment
- -12 dB to +6 dB, device setting range
- Control modes
- Standalone control or AVAA Controller App
- Remote-control network
- 2.4 GHz Wi-Fi; wireless is disabled by default
- Mains
- 100 to 240 V AC, 50/60 Hz
- Power consumption
- 1 W standby; 20 to 40 W typical; 48 W maximum
Installation conditions
- Mounting
- Optional feet support wall, ceiling and horizontal floor installation. All orientations require adequate ventilation; above-floor installations require secure mounting and child-access protection.
- Recommended room size
- 10 m² or larger (manufacturer guidance)
OPTIONS
Finishes and mounting feet

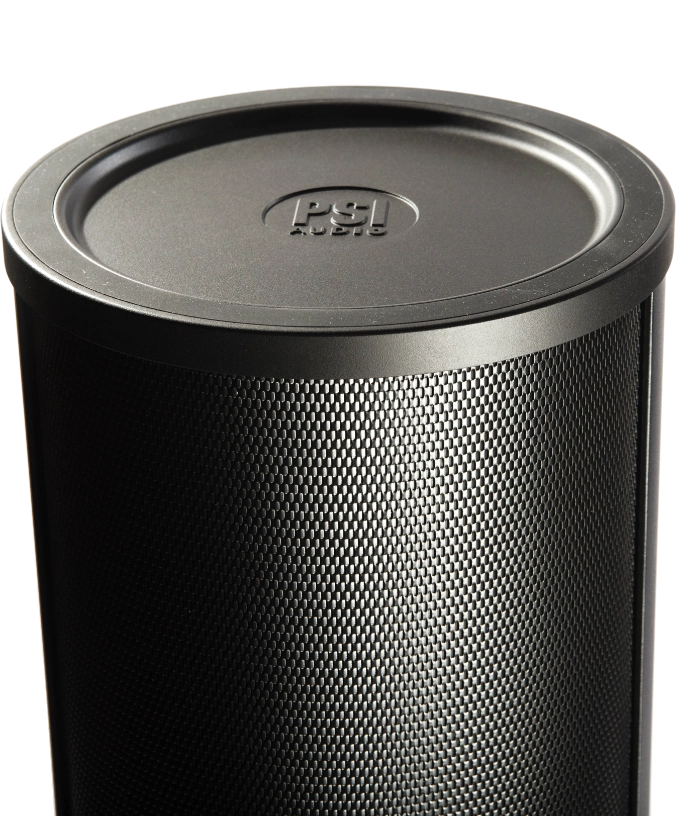

Finish
Black and white finishes are shown in the photographs. Ask us which colours are available to order.

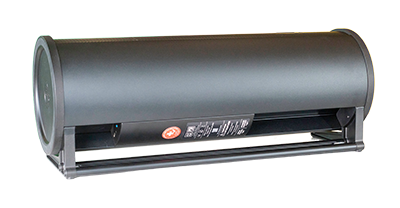

Horizontal placement
The mounting feet shown in the photographs are optional accessories for horizontal placement.
ROOM MEASUREMENT
Understand the cause of a bass problem
Room & Bass Measurement helps you understand why some notes boom, linger or disappear at the seat. We look at the room, speaker positions and subwoofer integration. You can book the service without buying a product.
FAQ
Common questions
Does AVAA C214 require calibration?+
No microphone calibration or target curve is needed. C214 starts working when powered on; you can adjust its position and sensitivity to suit the room.
How do I choose between C214 and C225?+
C214 is slimmer and easier to place in a listening room. C225 has a larger cabinet and more operating headroom for powerful home cinema bass and high-level listening. Compare the space available and your usual listening volume.
Where should it be placed?+
Start near a solid wall or corner, where bass pressure is often higher. Compare a few positions while keeping your speakers, seat and volume the same.
How is C214 different from EQ or noise cancellation?+
EQ changes the playback signal. C214 absorbs acoustic energy in the room without changing that signal. It is not a noise-cancelling system that uses an opposite-phase playback signal.
Can C214 fill in missing bass at my seat?+
C214 absorbs excess bass rather than playing additional bass. If a note disappears because sound cancels at your seat, start by trying different speaker or seat positions. Measurements can distinguish a cancellation dip from bass that rings too long.
Can AVAA C214 operate without internet access?+
Yes. C214 works without internet access. The app uses a 2.4 GHz Wi-Fi network for remote control; once the local network is set up, that control does not need an internet connection.
What warranty does PSI Audio provide?+
PSI Audio provides a five-year warranty, with an extra year when you register your product.
OFFICIAL PRODUCT INFORMATION
Manufacturer information and manuals
Find the product details, installation guidance and user manual below.
PRODUCT ENQUIRY
Ask about AVAA C214
What would you like to know about this product? If you want to discuss bass at home, you can briefly describe what you hear.
