Dedicated digital processing platform
Two DSPs, each rated at 12 billion operations per second, and two FPGAs run MSB’s digital filters and control functions outside the DAC. This lets the converter concentrate on producing the analogue signal.
MSB TECHNOLOGY · ACCESSORIES
Reference Digital Director
Reference Digital Director moves source connections and digital filtering into a separate 13 kg chassis with a low-noise linear power supply. ProISL fibre carries the processed signal to a compatible MSB DAC.
$38,500
2-year standard Australian warrantyAvailable to order in AustraliaAustralian availability and the exact supplied configuration are confirmed on enquiry.
Free shipping Australia-wide. Change-of-mind returns are not accepted. This does not limit rights available under Australian Consumer Law.
New product · Contact us to order
USES
Using the Reference Digital Director
Purpose
- Receives your digital sources and applies MSB reconstruction filters before conversion.
- Your existing compatible DAC continues to provide the analogue output and volume control.
Connections
- Four input-module slots let you connect a transport, computer or network source.
- ProISL fibre carries audio to the DAC; Control Link carries the control connection.
Key differences
- An upgrade for an existing compatible MSB DAC that keeps the converter and analogue system you already use.
- Reference Digital Director uses a 444 mm-deep chassis and weighs 13 kg. All three Directors share four input slots and the two-DSP processing platform.

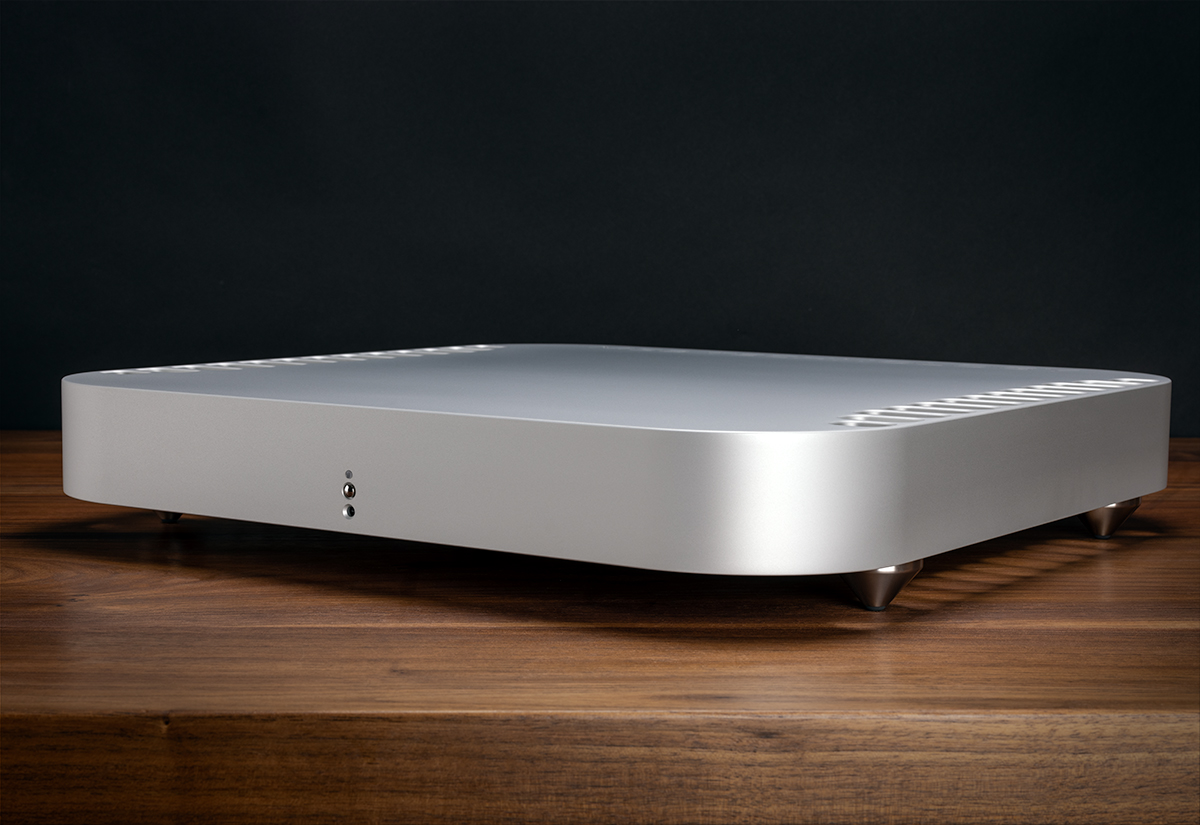

Reference Digital Director houses its digital input modules and power supply in a separate chassis.
PRODUCT DESIGN
Design and features
Isolated ProISL fibre link
ProISL sends audio over fibre rather than an electrical signal cable, separating the digital source-processing connection from the DAC’s conversion circuitry.
Power supply
Upgraded low-noise linear power supply
CONNECTIONS
Connections and system matching
Check the inputs and outputs against the equipment you already use. If you have a connection question, send us the model names or a photograph of the sockets.
Connecting and setting up
- For Discrete, Premier, Reference and Select DAC systems, the ProISL and Control Link modules and firmware must support the Director.
- Choose input modules for the digital outputs on your existing sources.
Points to consider
- The DAC remains in the system: Digital Director provides digital processing, not analogue audio output.
- Cascade, Palisade and Sentinel have their own Director systems; these standalone Directors are not interchangeable with them.
- The supplied connection set includes ProISL and Control Link modules and cables; source-input choices are listed in your quotation.
PRODUCT DETAILS
Technical specifications
Digital inputs and formats
- Input positions
- 4 advanced isolated input-module slots
- PCM
- 44.1 kHz to 3,072 kHz, up to 32 bit (input dependent)
- DSD
- 1×, 2×, 4× and 8× DSD; DoP supported on all inputs
Included connection set
- ProISL
- ProISL input module and ProISL cable
- Control Link
- Control Link module and Toslink cable
- Compatibility
- DAC model, configuration and firmware confirmed before supply
Physical
- Chassis
- 444 × 444 × 79 mm, excluding feet
- Weight
- 13 kg
- Power
- Upgraded low-noise linear power supply
OPTIONS
Finishes and configuration
Finish
- Matte silver anodize
- Matte black anodize
Configuration and included items
We’ll confirm your chosen finish and the supplied configuration in writing before accepting your order.
COMPARE MODELS
Other models to consider
MSB TECHNOLOGY · DACS & DIGITAL SOURCE
The Cascade DAC
Cascade brings digital playback and line-level analogue sources under one volume control. Eight Hybrid DAC MkII modules, a Digital Director and a separate Powerbase form its three-chassis system.
$147,500
2-year standard Australian warranty
MSB TECHNOLOGY · ACCESSORIES
Select Digital Director
Select Digital Director adds separate source handling and digital filtering to a compatible MSB DAC. It combines four input-module slots, ProISL fibre output and a low-noise linear power supply in a 16 kg chassis.
$43,500
2-year standard Australian warranty
MSB TECHNOLOGY · ACCESSORIES
Premier Digital Director
Add separate digital processing to a compatible MSB DAC while keeping its conversion and analogue output. Premier Digital Director provides four input-module slots in a shallow chassis with an internal power supply.
$24,500
2-year standard Australian warranty
PRIVATE DAC AUDITION
MSB DAC auditions in Croydon
MSB DAC auditions in Croydon are by appointment. Tell us which model interests you, and we’ll confirm the system available for your visit.
FAQ
Common questions
What is the Australian price for the Reference Digital Director?+
$38,500 including GST and a two-year standard Australian warranty. The written quotation lists the input modules selected for your sources.
Will the Reference Digital Director work with every MSB DAC?+
No. It is an upgrade for DACs that support the ProISL and Control Link connection, including suitable Discrete, Premier, Reference and Select configurations. Installed modules and firmware determine compatibility. Cascade, Palisade and Sentinel use their own dedicated Directors.
Can the Reference Digital Director be included in an MSB audition?+
Ask us about including a Director in a private MSB session in Croydon. We will agree on the available DAC and Director before your visit, so you know which combination you will hear.
