Amplification matched to the drivers
The crossover and amplifiers are designed for the drivers in each cabinet. The signal path is analogue, without DSP, and the built-in amplification removes the need for a separate power amplifier.
ACTIVE LOUDSPEAKER

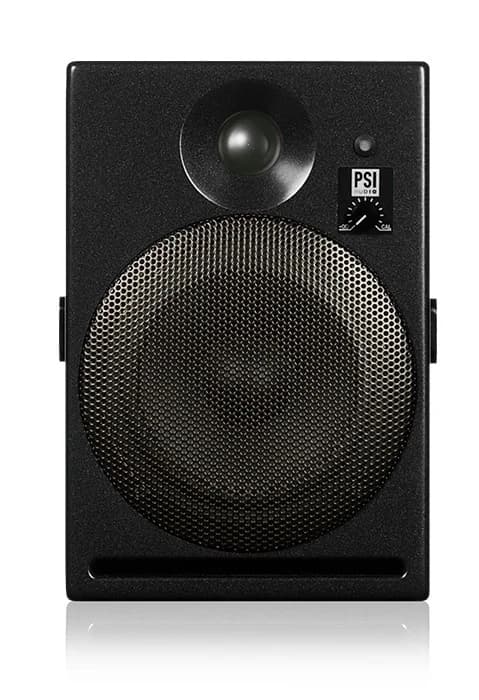

PSI Audio A14-M Broadcast
A compact active speaker with a metal grille and front level control for fixed installations and multichannel systems. It shares A14-M Studio’s acoustic specifications in a cabinet designed for easier protection and access.
FromA$5,798 per pair
IS IT RIGHT FOR YOUR SYSTEM?
Why consider A14-M Broadcast?
Choose Broadcast when a protective grille, front level control or bracket mounting would make the installation easier. The sound-related specifications are the same as Studio.
Measured individually in Switzerland
PSI Audio builds, measures and calibrates each speaker in Switzerland against its reference response. This sets up the speaker before it leaves the factory; placement and the room shape what you hear at home.
How does it compare?
Broadcast adds a metal grille, front level control and a mounting-bracket design to the A14-M format. Choose it for these installation features; Studio is the simpler option for a desk or stands.
| Compare | A14-M Studio | A14-M Broadcast |
|---|---|---|
| Studio Red price | A$5,398 per pair | A$5,798 per pair |
| Design | Two-way active | Two-way active |
| Bandwidth at −6 dB | 56 Hz to 23 kHz | 56 Hz to 23 kHz |
| Each cabinet: W × H × D | 163 × 243 × 170 mm | 163 × 243 × 170 mm |
| Weight per cabinet | 4.9 kg | 4.9 kg |
| Manufacturer distance guide | 0.5 to 1 m | 0.5 to 1 m |
Allow extra space for cables, ventilation and stands. Listening distances are PSI’s setup guide.
A14-M Studio
Exposed drivers for a straightforward desktop or stand-mounted setup.
A14-M Broadcast
Metal grille, front level control and a bracket-mounting design for fixed installations. Ask us about brackets for your mounting position.
Connections and placement
DAC / preamplifierAnalogue output · volume controlled
Left output → XLRLeft speakerMains power to each cabinet
Right output → XLRRight speakerMains power to each cabinet
- Connect the left and right variable analogue outputs of your DAC or preamplifier to the speakers’ XLR inputs. A fixed-output DAC needs a preamplifier or volume controller between it and the speakers.
- The XLR input takes a line-level signal. Never connect a power amplifier’s speaker output to it. Start playback at low volume after connecting the system.
- A subwoofer needs a line-level feed that follows the main system volume. Set its level and crossover alongside the main speakers so they blend through the bass.
Where to place it
Aim each speaker towards the listening position and leave room for its signal and power cables. For surround use, it connects to the corresponding channel’s pre-out, with volume controlled by the processor.
Each cabinet needs mains power and ventilation around its amplifier panel. The manual covers voltage selection and installation clearances. Use the distance guide above as a starting point for your listening setup.
COLOURS & PRICES
Choose your finish.
The starting price is for Studio Red. Compare all three finishes below.
| Finish | Per pair | Each |
|---|---|---|
Studio RedProduct codeA14MBCASTMSR | A$5,798 | A$2,899 |

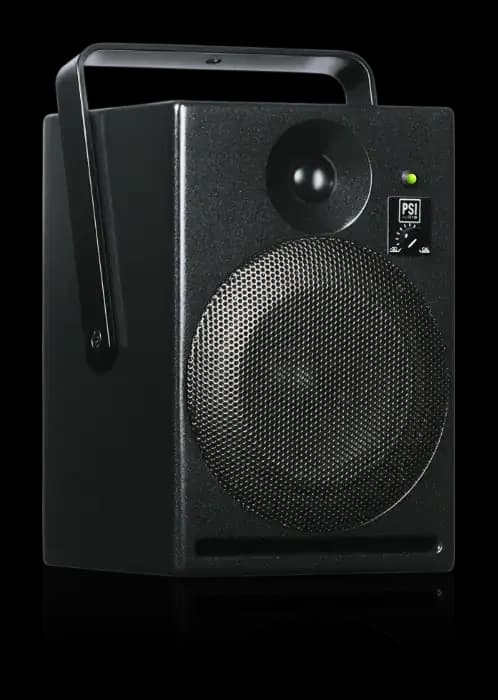

Metal BlackProduct codeA14MBCASTMSB | A$5,998 | A$2,999 |

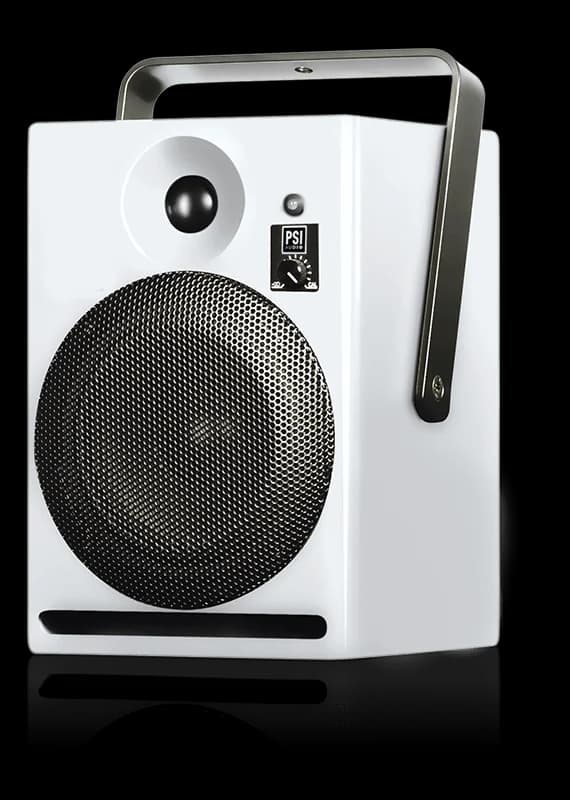

Pure WhiteProduct codeA14MBCASTMSW | A$5,998 | A$2,999 |
A pair contains two speakers, priced at twice the single-unit price.
Enquire about this model
Specifications
- System
- Two-way active
- Bandwidth at −6 dB
- 56 Hz to 23 kHz
- Typical listening distance
- 0.5 to 1 m
- Peak maximum SPL at 1 m
- 113 dB, manufacturer product page
- Amplifier peak power (manufacturer)
- 110 + 45 W
- Dimensions (W × H × D)
- 163 × 243 × 170 mm
- Net weight
- 4.9 kg
- Inputs
- 1 × balanced XLR, female 3-pin
SPL is the manufacturer’s peak figure at 1 m. Amplifier power is also a peak rating; neither figure describes continuous output.
Technical documents
Common questions
Can I keep my current amplifier or source?
Yes, if it provides an analogue output with volume control. A DAC with variable XLR outputs can connect directly; a fixed-output DAC needs a preamplifier. An integrated amplifier with a variable pre-out can also serve as the front end. For RCA outputs, use a cable wired for the PSI input.
Do I also need a subwoofer?
You can start with the main speakers on their own. Add a subwoofer if you want more of the lowest bass in your music or films. Its position, volume and crossover need to work with the main speakers.
What warranty does PSI Audio provide?
PSI Audio provides a five-year warranty, with an extra year when you register your product.
